Home
Portable Blast Machines
Portable sand blast machines are mainly used to clean bigger components on-site, like steel structure, bridge, big tank body, used for big tanks vessel repaire, pipe rust removing at oil field, container renew, etc, and generally used in open, or used in very big blast rooms.

The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting.

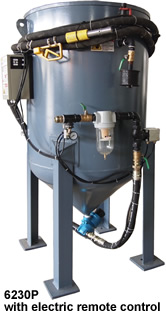

Portable pressure  blasting machines 4040P, 4720P, 6230P to be supplied with pressure blast machine fitted with remote control system, abrasive valve, moisture separator, 10 meter remote control hose, 10 meter heavy duty blast hose with nozzle holder, coupling and venturi boron carbide blast nozzle.

6230(2)P to be supplied with two outlets allows two operators to work without interference.

Portable suction blasting machines 4848A, 6060A to be supplied with suction blast machine fitted with electric remote control system, moisture separator, 4 meter remote control line, 4 meter blast hose with nozzle holder, coupling and straight bore boron carbide blast nozzle.

4040P, 4720P 4848A and 6060A are mobiled on 3 wheels or 2 wheels and one leg or in stationary upon request, 6230P and 6230(2)P are supplied in stationary only.

  portable abrasive blasting equipments

Model 4040P
4720P
6230P
6230(2)P
4848A
6060A
Pot Diameter (mm)
400
600
900
900
480
600
Heigh (mm) 1000 1450 1900 1900 900 1200
Weight (kg) 65 300 400 450 50 255
Capacity (L)
80
270
600
600
130
200
Outlet
1
1
1
2
1
1
Blast hose ID (mm) 3/4 1-1/4" 1-1/4" 1-1/4 1/2" 1/2"
Compressed air consumption (m3 /min)
4.5
4.5
4.5
9.0
1.5
1.5
Woking pressure (bar)
5-7 5-7 5-7 5-7 2-7 2-7
Remote control
Pneu. or elec. Pneu. or elec. Pneu.or elec. Pneu.or elec. Elec. Elec.
Portable or Stationary portable portable Stationary Stationary portable or stationary portable or stationary
Options:
1. Cover
2. Screen
3. wet blast nozzle
4. Protective cloth with Hood
5. Respiratory filter
Portable blast machine BTA6060 4720 portbale blast machine with pneumatic remote control
